CPZ505 PTZ Camera

Evolution for your Demand

		CPZ505
		High Image Quality
		High-Speed Pan/Tilt Mechanism and Auto-Focus Zoom Lens
		Auto Tracking Function to Following Intruders
		Remote-Controllable Direct Panning and Tilting
		Preset Points and Auto Tour
		Advanced White Balance Function
		Graphical On-Screen Display
		Vandal Proof Case Design
		Text Display of Camera Title

		CPZ201

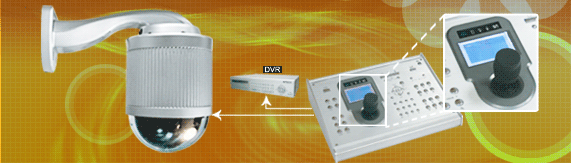

		Control all devices through one keyboard controller (Up to 64 devices)
		Devices such as PTZ camera, DVR and door access control…etc.
		User-friendly buttons placement & LCD control panel (128*64 pixels) for easy operation
		Support two protocols (AVTECH and PELCO-D)
		Password protection to prevent unauthorized intruder
		Built-in microphone for broadcast function

Outdoor 22X Zoom Speed Dome Camera
GENERAL
Signal System	NTSC or PAL
Pick-up Element	1/4" Sony Color Super HAD CCD
Number of Pixels	768(H)494(V)<NTSC> / 752(H)582(V)<PAL>
Resolution	480TV lines
Min. Illumination	0.3 Lux / F1.6
S/N Ratio	More than 48dB (AGC off)
Video Output	1.0 Vp-p. 75Ω
BLC	On / Off
Gain Control	Low, Medium & High / Off
Sharpness	Low / Medium / High
White Balance	Auto / Indoor 1 / Indoor 2 / Outdoor * Indoor1 = 3200K; Indoor2 = 4700K
Camera Title	10 characters
Preset Points	Total 8 groups, 256 programmable preset points * The sequence of the preset points will follow the minimal route.
Auto Tour	Group sequence (1 ~ 8 groups)
Auto Tracking	Yes (combined with auto zoom focus tracking)
LENS
Focal Length	f3.9 mm ~ f85.9 mm
F-number	F1.6 (Wide) ~ 3.7 (Tele)
Viewing Angle	4°~ 80°
Auto Electronic Shutter	1 / 60 (1/50) to 1 / 100,000 sec.
Auto Focus	Manual / Auto
MECHANISM
PanRange	360°
Pan Speed	360°/ sec
TiltRange	90°
Tilt Speed	0°~ 90°under 1 sec
Zoom Ratio	22X optical zoom
Zoom Speed	Approx. 7s (Tele ~ Wide)
OTHERS
IP Rating	IP666
Ambient Operating Temperature	0°C ~ 35°C (32°F ~ 95°F)
Power Source	DC12V ± 10%
Current Consumption	1A (max)
Dimension (mm)	145(Ø) x 184(H) mm (± 5mm)
Gross Weight (g)	Approx. 1.2 kg
Optional Bracket	wall-mounted
